Planetary Reducer

MKER – 2 stage

MOTOREDUCER

MKER – 2 stage

2 stage

Ratio:15,20,25,30,35,40,45,50,60,70,80,90,100

Backlash

p ≤ 7 arcmin

s ≤ 9 arcmin

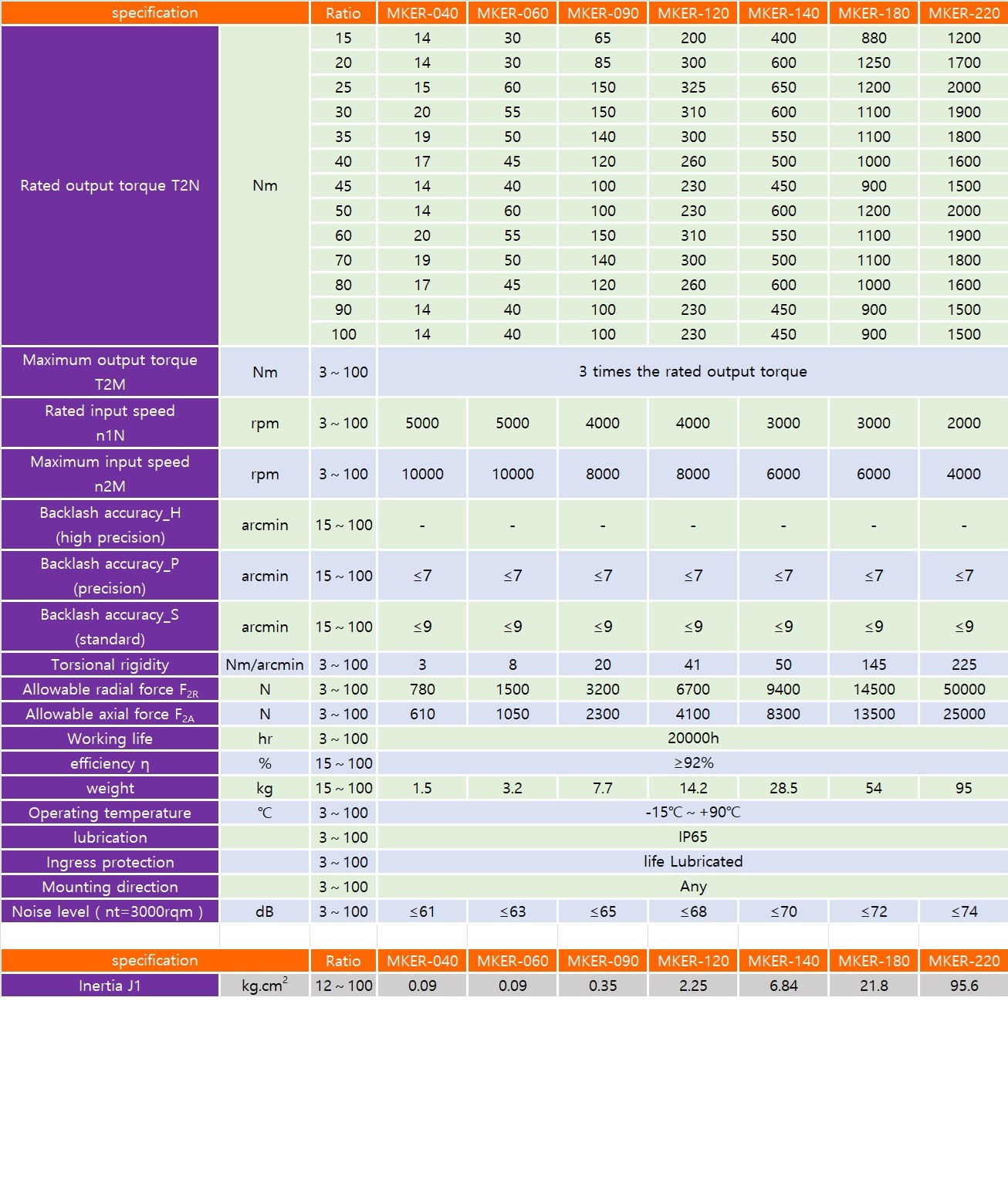

specification

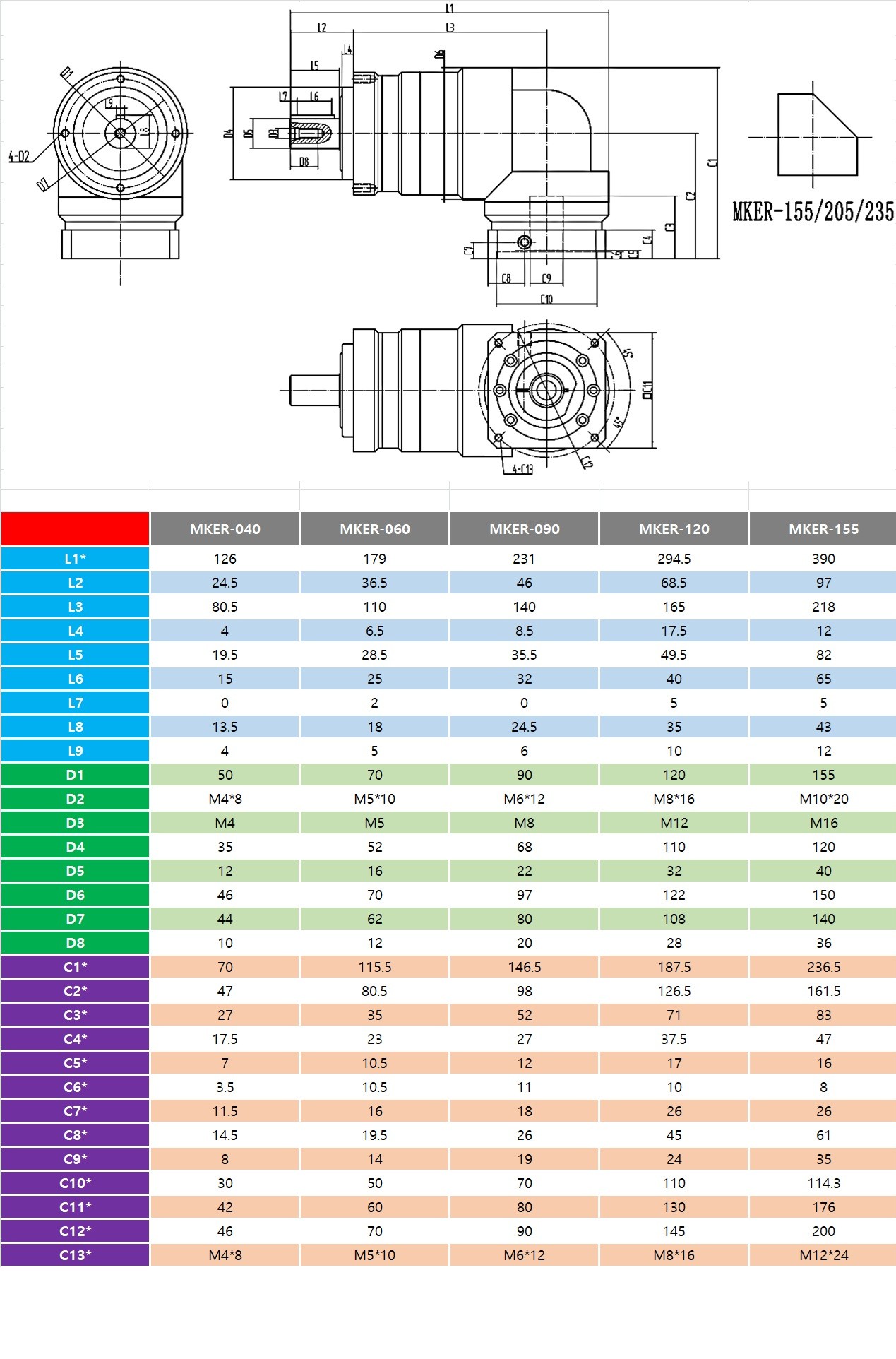

Dimention

도면(PDF)

MKER-040-L2 stage

MKER-060-L2 stage

MKER-090-L2 stage

MKER-120-L2 stage

MKER-155-L2 stage

MKER-205-L2 stage

다운로드
다운로드
다운로드
다운로드
다운로드
다운로드
